Glide ModelLoader

Glide 初始化的时候会初始化GenericLoaderFactory,然后会注册一系列的工厂

register(File.class, ParcelFileDescriptor.class, new FileDescriptorFileLoader.Factory());
register(File.class, InputStream.class, new StreamFileLoader.Factory());
register(int.class, ParcelFileDescriptor.class, new FileDescriptorResourceLoader.Factory());
register(int.class, InputStream.class, new StreamResourceLoader.Factory());
register(Integer.class, ParcelFileDescriptor.class, new FileDescriptorResourceLoader.Factory());
register(Integer.class, InputStream.class, new StreamResourceLoader.Factory());
register(String.class, ParcelFileDescriptor.class, new FileDescriptorStringLoader.Factory());
register(String.class, InputStream.class, new StreamStringLoader.Factory());
register(Uri.class, ParcelFileDescriptor.class, new FileDescriptorUriLoader.Factory());
register(Uri.class, InputStream.class, new StreamUriLoader.Factory());
register(URL.class, InputStream.class, new StreamUrlLoader.Factory());
register(GlideUrl.class, InputStream.class, new HttpUrlGlideUrlLoader.Factory());
register(byte[].class, InputStream.class, new StreamByteArrayLoader.Factory());

来看看GenericLoaderFactory.java里的注册

 public synchronized <T, Y> ModelLoaderFactory<T, Y> register(Class<T> modelClass,
      Class<Y> resourceClass, ModelLoaderFactory<T, Y> factory) {
        cachedModelLoaders.clear();

        Map<Class/*Y*/, ModelLoaderFactory/*T, Y*/> resourceToFactories
        = modelClassToResourceFactories.get(modelClass);
        if (resourceToFactories == null) {
            resourceToFactories = new HashMap<Class/*Y*/, ModelLoaderFactory/*T, Y*/>();
            modelClassToResourceFactories.put(modelClass, resourceToFactories);
        }

        ModelLoaderFactory/*T, Y*/ previous = resourceToFactories.put(resourceClass, factory);

        if (previous != null) {
            // This factory may be being used by another model. We don't want
            // to say it has been removed unless we know it has been removed for all models.
            for (Map<Class/*Y*/, ModelLoaderFactory/*T, Y*/> factories : modelClassToResourceFactories.values()) {
                if (factories.containsValue(previous)) {
                    previous = null;
                    break;
                }
            }
        }

        return previous;
    }

它是一个Map<modelClass,Map<resourceClass,factory>>结构

然后看看Glide.width(context).load(String)到底干了什么:

public DrawableTypeRequest<String> load(String string) {
    return (DrawableTypeRequest<String>) fromString().load(string);
}


public DrawableTypeRequest<String> fromString() {
      Log.d("seekting","RequestManager.fromString");
      return loadGeneric(String.class);
  }
private <T> DrawableTypeRequest<T> loadGeneric(Class<T> modelClass) {
    Log.d("seekting","RequestManager.loadGeneric");
    ModelLoader<T, InputStream> streamModelLoader = Glide.buildStreamModelLoader(modelClass, context);
    ModelLoader<T, ParcelFileDescriptor> fileDescriptorModelLoader =
            Glide.buildFileDescriptorModelLoader(modelClass, context);
    if (modelClass != null && streamModelLoader == null && fileDescriptorModelLoader == null) {
        throw new IllegalArgumentException("");
    }

    return optionsApplier.apply(
          new DrawableTypeRequest<T>(modelClass, streamModelLoader, fileDescriptorModelLoader, context,
                    glide, requestTracker, lifecycle, optionsApplier));
}


public GenericRequestBuilder<ModelType, DataType, ResourceType, TranscodeType> load(ModelType model) {
    this.model = model;
    isModelSet = true;
    Log.d("seekting","GenericRequestBuilder.load model="+model);
    return this;
}

最复杂就是loadGeneric方法:

它先build两个ModeLoader，分别是 ModelLoader ModelLoader 可以联想一下前面介绍的register

register(String.class, ParcelFileDescriptor.class, new FileDescriptorStringLoader.Factory());
register(String.class, InputStream.class, new StreamStringLoader.Factory());

是不是有着紧密的联系String.class充当Model,inputStream和ParcelFileDescriptor充当Resource 来看Glide.buildStreamModelLoader做了什么:

public static <T> ModelLoader<T, InputStream> buildStreamModelLoader(Class<T> modelClass, Context context) {
    return buildModelLoader(modelClass, InputStream.class, context);
}


    public static <T, Y> ModelLoader<T, Y> buildModelLoader(Class<T> modelClass, Class<Y> resourceClass,
            Context context) {
         if (modelClass == null) {
            if (Log.isLoggable(TAG, Log.DEBUG)) {
                Log.d(TAG, "Unable to load null model, setting placeholder only");
            }
            return null;
        }
        return Glide.get(context).getLoaderFactory().buildModelLoader(modelClass, resourceClass);
    }

最后到GenericLoaderFactory.java

public synchronized <T, Y> ModelLoader<T, Y> buildModelLoader(Class<T> modelClass, Class<Y> resourceClass) {
        ModelLoader<T, Y> result = getCachedLoader(modelClass, resourceClass);
        if (result != null) {
            if (NULL_MODEL_LOADER.equals(result)) {
                return null;
            } else {
                return result;
            }
        }

        final ModelLoaderFactory<T, Y> factory = getFactory(modelClass, resourceClass);
        if (factory != null) {
            result = factory.build(context, this);
            cacheModelLoader(modelClass, resourceClass, result);
        } else {
            cacheNullLoader(modelClass, resourceClass);
        }
        return result;
    }

先找通过getCachedLoader找缓存要loader，如果没有,则通过之前register的map里去找Factory(getFactory就是二维map里去找,就不细说了);
会通过factory去build，拿到factory之后会去build，并把它cache住；glide.load(String)最终得到的就是StreamStringLoader

为什么注册的时候只是注册factory，而不是Loader自己?

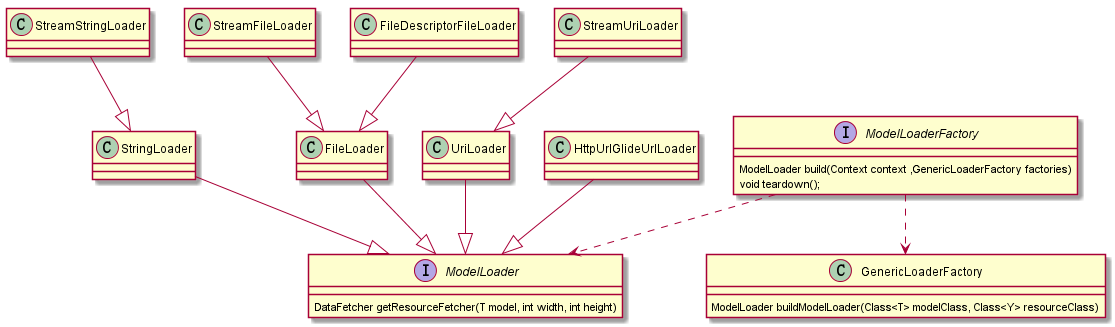

以下是ModelLoader家族类图，没有列全

很多Loader都通过UriLoader处理

来看UriLoader的源码:

public abstract class UriLoader<T> implements ModelLoader<Uri, T> {
    private final Context context;
    private final ModelLoader<GlideUrl, T> urlLoader;

    public UriLoader(Context context, ModelLoader<GlideUrl, T> urlLoader) {
        this.context = context;
        this.urlLoader = urlLoader;
    }

    @Override
    public final DataFetcher<T> getResourceFetcher(Uri model, int width, int height) {
        final String scheme = model.getScheme();

        DataFetcher<T> result = null;
        if (isLocalUri(scheme)) {
            if (AssetUriParser.isAssetUri(model)) {
                String path = AssetUriParser.toAssetPath(model);
                result = getAssetPathFetcher(context, path);
            } else {
                result = getLocalUriFetcher(context, model);
            }
        } else if (urlLoader != null && ("http".equals(scheme) || "https".equals(scheme))) {
            result = urlLoader.getResourceFetcher(new GlideUrl(model.toString()), width, height);
        }

        return result;
    }

    protected abstract DataFetcher<T> getLocalUriFetcher(Context context, Uri uri);

    protected abstract DataFetcher<T> getAssetPathFetcher(Context context, String path);

    private static boolean isLocalUri(String scheme) {
        return ContentResolver.SCHEME_FILE.equals(scheme)
                || ContentResolver.SCHEME_CONTENT.equals(scheme)
                || ContentResolver.SCHEME_ANDROID_RESOURCE.equals(scheme);
    }
}

它对getResourceFetcher做了实现，通过Uri来决定用哪个Fetcher(获取者)

来看一个有趣的实现

 @Override
    protected InputStream loadResource(Uri uri, ContentResolver contentResolver) {
        Log.d("seekting", "StreamLocalUriFetcher.loadResource uri=" + uri);
        return contentResolver.openInputStream(uri);
    }

本地的res获取方式居然是通过contentResolver,其实看看底层都是通过Resources.openRawResource获取资源 :joy:

总结一下，我们知道了loadGeneric方法里： ModelLoader<T, InputStream> streamModelLoader = Glide.buildStreamModelLoader(modelClass, context); 的逻辑，大概就是拿一个ModelLoader，而这个Loader是通过之前注册了Factory 创建出来的，并有缓存机制在里面

接下来是fileDescriptorModelLoader: ModelLoader<T, ParcelFileDescriptor> fileDescriptorModelLoader = Glide.buildFileDescriptorModelLoader(modelClass, context);

   public static <T> ModelLoader<T, ParcelFileDescriptor> buildFileDescriptorModelLoader(
            Class<T> modelClass,Context context) {
        return buildModelLoader(modelClass, ParcelFileDescriptor.class, context);
    }

其实逻辑与前面一样，只不过传的resource 是ParcelFileDescriptor

loader得到之后就是new DrawableTypeRequest

 new DrawableTypeRequest<T>(modelClass, streamModelLoader, fileDescriptorModelLoader, context,
                        glide, requestTracker, lifecycle, optionsApplier)

  DrawableTypeRequest(Class<ModelType> modelClass, ModelLoader<ModelType, InputStream> streamModelLoader,
            ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader, Context context, Glide glide,
            RequestTracker requestTracker, Lifecycle lifecycle, RequestManager.OptionsApplier optionsApplier) {
        super(context, modelClass,
                buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
                        GlideDrawable.class, null),
                glide, requestTracker, lifecycle);
        this.streamModelLoader = streamModelLoader;
        this.fileDescriptorModelLoader = fileDescriptorModelLoader;
        this.optionsApplier = optionsApplier;
    }

而DrawableTypeRequest的构造里：

   super(context, modelClass,
                buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
                        GlideDrawable.class, null),

来看看这个provider的组成

private static <A, Z, R> FixedLoadProvider<A, ImageVideoWrapper, Z, R> buildProvider(Glide glide,
            ModelLoader<A, InputStream> streamModelLoader,
            ModelLoader<A, ParcelFileDescriptor> fileDescriptorModelLoader, Class<Z> resourceClass,
            Class<R> transcodedClass,
            ResourceTranscoder<Z, R> transcoder)

resourceClass是GifBitmapWrapper.class transcodedClass是GlideDrawable.class 最终生成一个FixedLoadProvider从而创建出DrawableTypeRequest，有关DataLoadProvider下一章会有介绍
